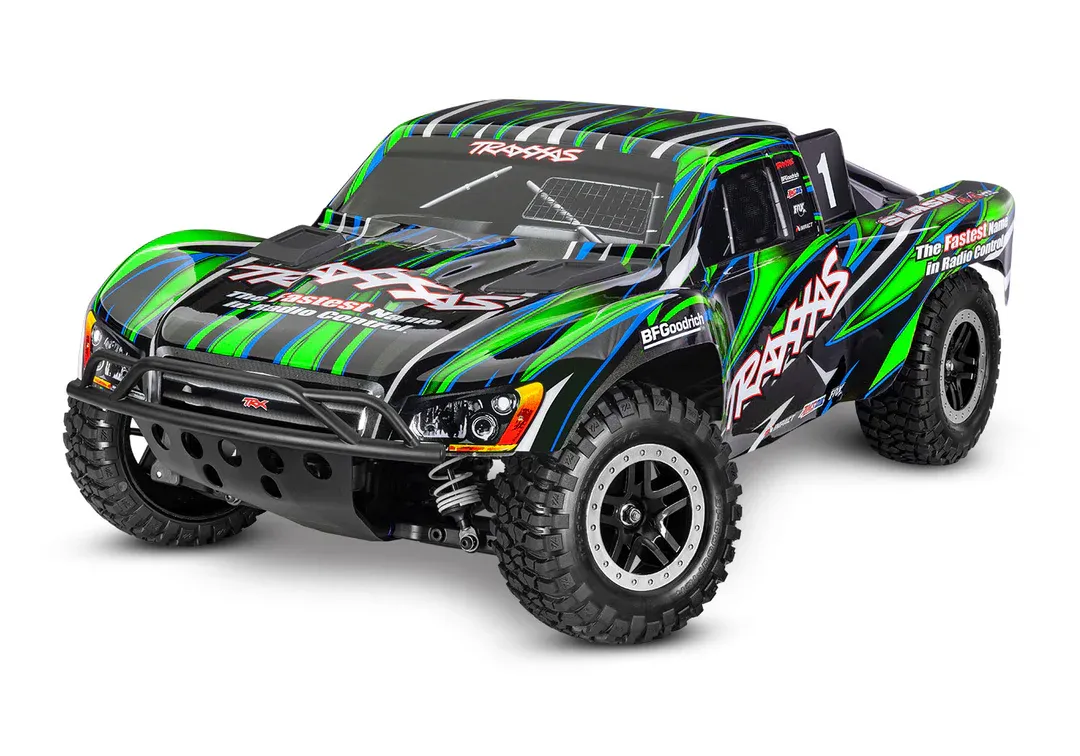

68386-4-GRN Slash 4X4 VXL

Traxxas Slash® set the standard for durability, performance, and fun by which all other short course trucks are measured. Now Slash 4X4 VXL includes a factory-installed Extreme Heavy Duty Upgrade Kit to take brutal punishment in stride. Innovations like TSM®, modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision. Slash 4X4’s extreme Velineon® brushless horsepower provides dirt-roosting torque and screaming 60+ mph speed with a TQi™ radio system to keep everything under precise control.

Slash's factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. Maxx-duty® driveshafts and HD suspension arms, along with upgraded shock towers and outer suspension components, make this is the strongest driveline ever offered in a Slash.

From races at the local track to backyard bash sessions, Slash 4X4 is Ready-To-Race® right out of the box. Slash’s track-bred chassis features an integrated transponder mount and extended battery tray for optimum weight positioning. Slash gives you the winning edge with a fully adjustable steel-link suspension and tunable oil-filled differentials to put the power down smoothly.

Slash 4X4’s tough clipless body holds firm no matter how rough the action gets. Heavy-duty latches grip the body tightly, but release in just seconds to access the chassis. Slash’s hidden latching system replaces time-consuming and inconvenient body clips with large, reinforced panels to resist pull-through damage.

FEATURES:

• Clipless Short Course Body
  • Tough front and rear tube-style bumpers
  • Body reinforcements to prevent pull-through damage
  • Holds tight for intense action
  • Quick and easy removal
  • Smooth appearance with no body posts or clips
• Extreme Heavy Duty Upgrade Kit Installed
  • Strengthened C-hubs, axle carriers, steering blocks, and shock towers
  • Maxx-duty® driveshafts
    • Oversize diameter
    • 6 mm axles
    • Steel wheel hexes
• TQi™ 2.4 GHz High Output Transmitter
  • TQi 2-channel transmitter
  • All-day comfort with precise long-range control
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug
• Velineon® VXL-3s™ Waterproof Electronic Speed Control
  • Three Programmable Drive Profiles
    • Sport Mode - Forward / Brake / Reverse
    • Race Mode - Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Heat sink accepts accessory cooling fan (3340)
  • Traxxas EZ-Set® one-button setup
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
  • LiPo battery packs: 2-3 cells (7.4-11.1 volts)
• Velineon® 3500 Kv Brushless Motor
  • Ultra high-temperature sintered Neodymium magnets
  • Optimized for power and efficiency in 1/10th scale vehicles
  • Low-maintenance design
  • Efficient, high-speed ball bearings
  • Precision-balanced rotor
  • 3500 Kv
  • Efficient ball bearings
  • Brilliant blue-anodized finish
• Traxxas Stability Management® (TSM)
  • Improves straight line acceleration and braking on low-traction surfaces
  • Maintains steering composure to allow throttle-on powerslides
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter
• Steering
  • Chassis-mounted servo
  • Dual bellcrank design with integrated servo saver
• Chassis
  • Extended modular composite tub design
  • Secure battery hold-down latch
  • Side nerf bars for impact resistance
• Suspension
  • Steel adjustable toe and camber links
  • Heavy duty suspension arms
  • Oil-filled Ultra Shocks
  • White powder-coated progressive springs
• Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • Sealed steel gear front and rear differentials
  • Large 32-pitch steel spur gear
• Wheels and Tires
  • Black Split-Spoke SCT wheels
    • 2″ outer diameter, 3″ inner diameter
  • Replica BFGoodrich® Mud Terrain T/A® Tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 23.36 inches (568 mm)
• Front Track: 11.65 inches (296 mm)
• Rear Track: 11.65 inches (296 mm)
• Center Ground Clearance: 2.83 inches (72 mm)
• Weight (no battery): 5.82 pounds (2.41 kg)
• Height (overall): 7.60 inches (193 mm)
• Wheelbase: 12.75 inches (324 mm)
• Shock Length (front): 3.45 inches (88 mm) - Long
• Shock Length (rear): 3.98 inches (101 mm) - XX-long
• Tires: BFGoodrich® Mud Terrain T/A®
• Tire Diameter: 4.3″ x 1.7″ (109 mm x 43 mm)
• Wheels (front/rear): Black Split-Spoke SCT wheels
• Wheel Diameter:
  • 2.2 inches (56 mm) (outer)
  • 3.0 inches (76 mm) (inner)
• Speed Control: Velineon® VXL-3s™
• Motor (electric): Velineon® 3500 Kv sensorless brushless
• Overall Drive Ratio: 11.82:1
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Modular composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual bellcrank with integrated servo saver
• Radio System: TQi™ 2.4 GHz (2-channel)
• Servo: Waterproof digital 2075 servo (125 oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm
• Required Batteries: 4 “AA” (transmitter), Vehicle
• MOTOR SPECS:
  • Type: Velineon 3500 Kv sensorless brushless
  • Weight: 9.24 ounces (262 g)
  • Length: 2.20 inches (56 mm)
  • Diameter: 1.41 inches (36 mm)
  • Connector Type: 3.5 mm bullet
• ESC Specs:
  • Input Voltage (cells): 7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
  • Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm)
  • Weight: 3.84 ounces (109 g)
  • BEC Voltage: 6.0 volts
  • Reverse Delay: Yes, with lockout
  • Thermal Protection: Two-stage thermal shutdown
  • Ports: Auxiliary fan

INCLUDES:

• Slash 4X4 with VXL-3s ESC and 3500 Kv brushless motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

Needed to complete:

• Batteries - Slash 4X4 requires a single NiMH or LiPo battery
• Charger - Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter
